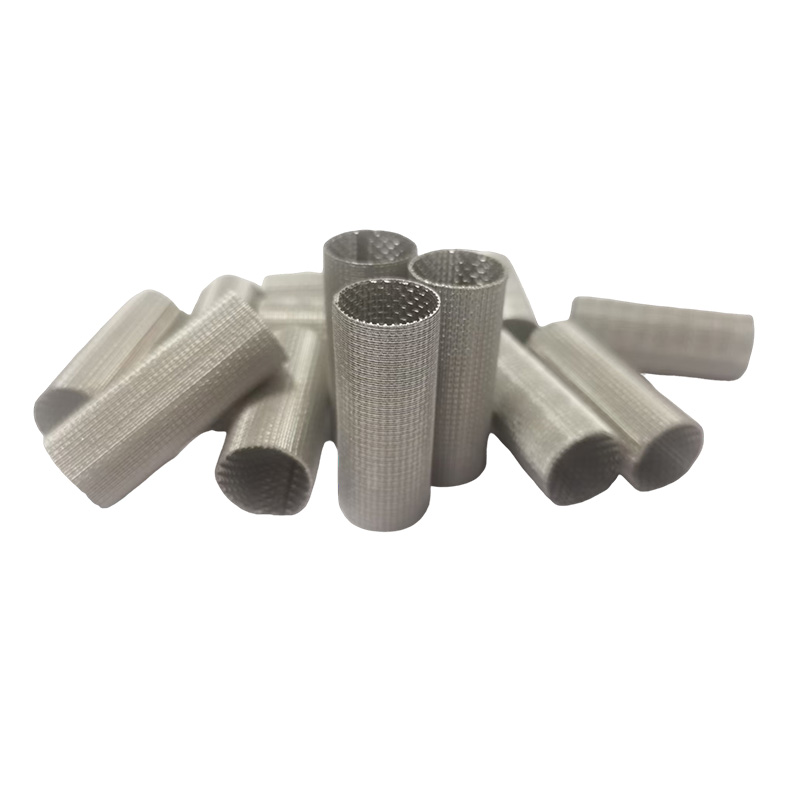

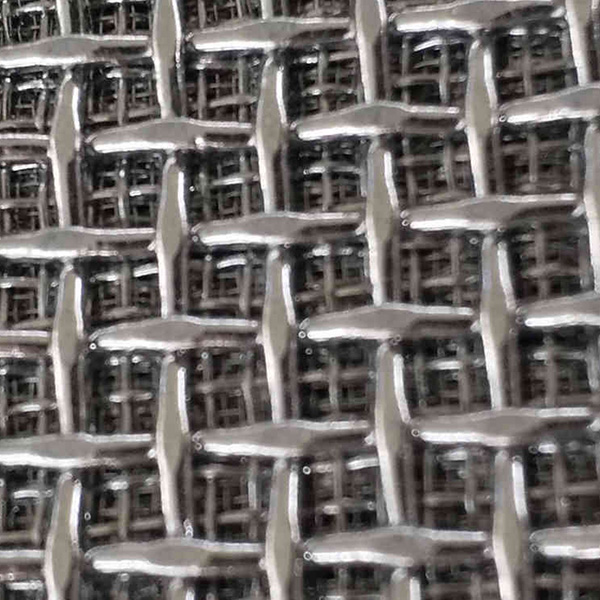

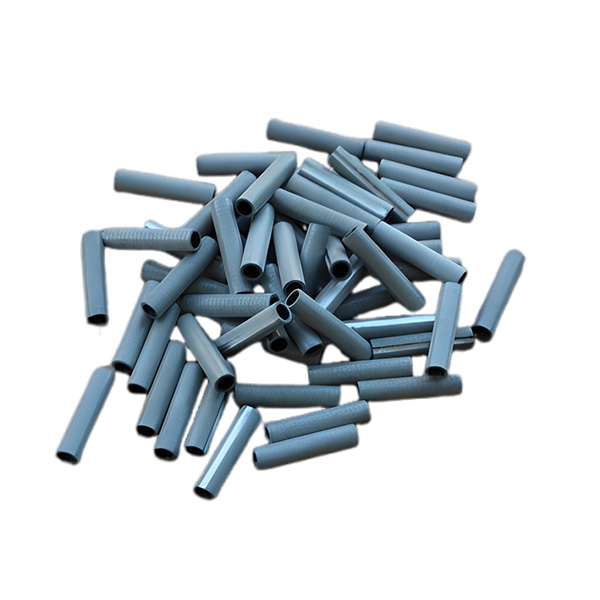

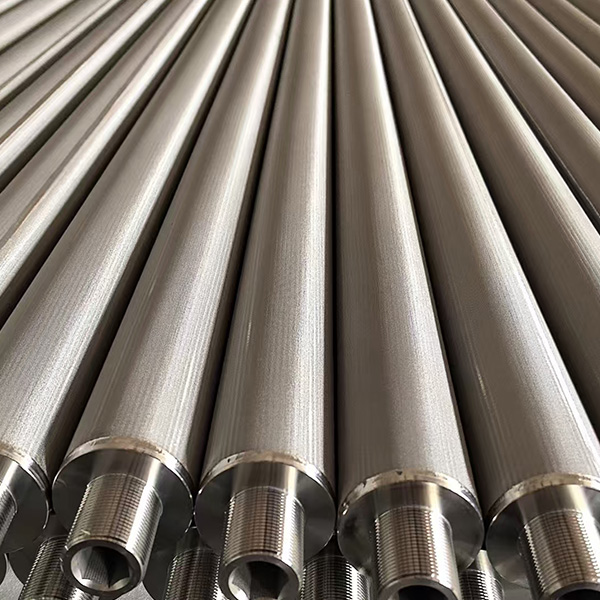

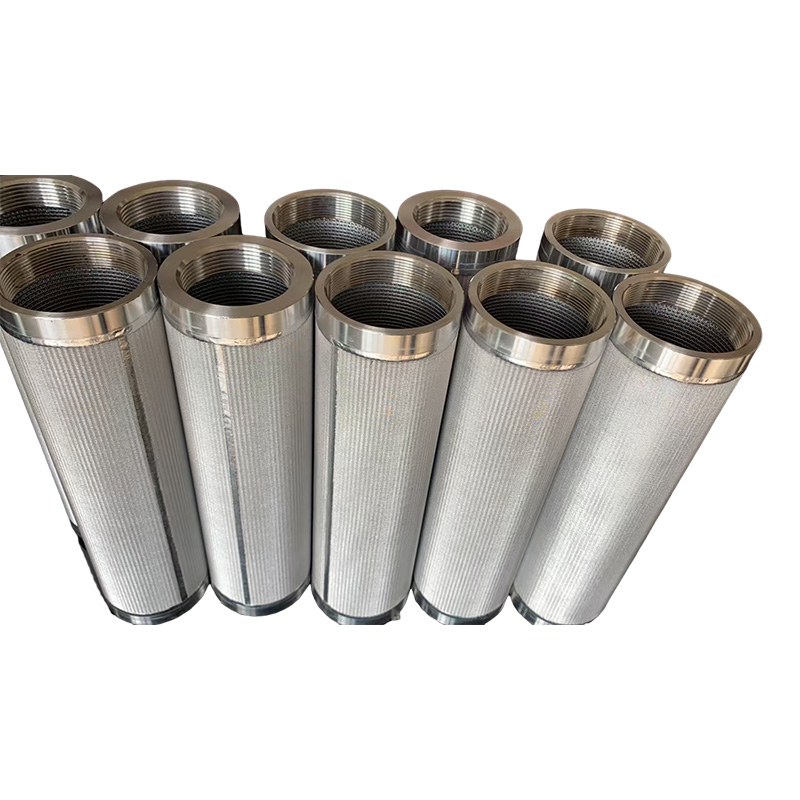

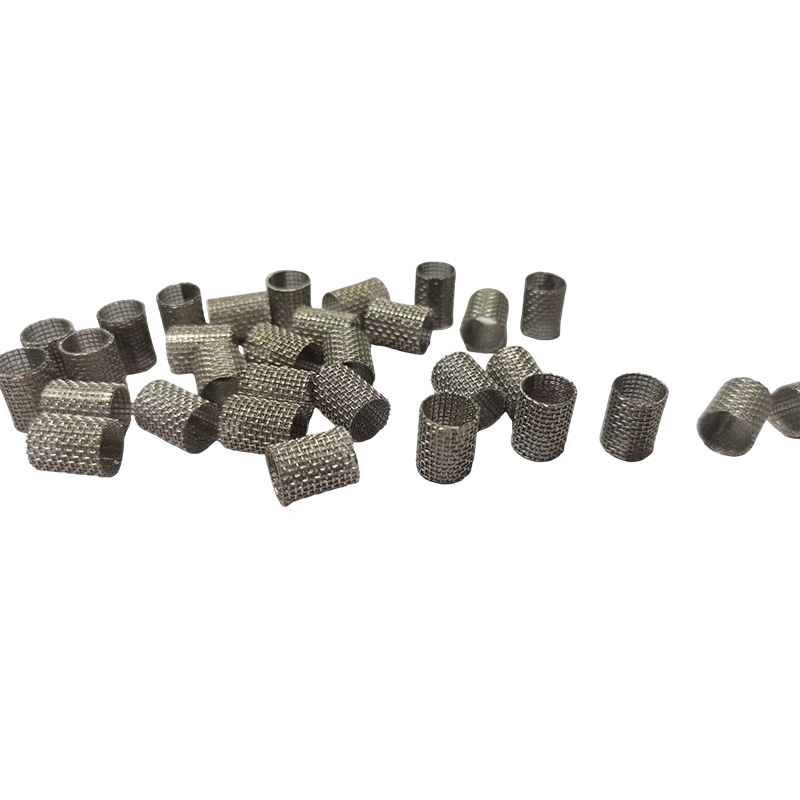

Mesh Laminated Sintering Elements

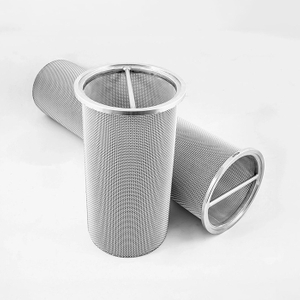

Sintered mesh filter elements also have high toughness, making them easy to weld, install, and remove.
Their pore size is stable and evenly distributed, ensuring consistent filtration performance while also providing high filtration accuracy and efficiency.

Not only do they have a high flow rate per unit area, but they also have a long service life

Availability:

Quantity:



Inquire

Product Description

Diameter: Min 10mm, other size customized.

Length: 50--1200mm (special size available upon request)

Diameter of disc: 10mm, 3200mm (special dimensions can be customized);

Materials and operating temperatures: 304 (≤300°C), 316L (≤320°C), 904L≤500°C, Hastall; special materials customized according to requirements.

Filtering accuracy: 5μm to 1000μm (for liquids); 1μm to 80μm (for gases).

Connection types: 222, 220, 222, 226, M36,M20 standard interfaces flange connections, quick-connect interfaces.

Main connection methods:

1. Standard interfaces (such as 222, 220, 226);

2. Quick-connect interfaces;

3. Threaded connections;

4. Flange connections;

5. Rod connections;

6. Custom-made connections.

Application areas:

These filter elements are used in various industries, including polyester production, water treatment, oil products, pharmaceuticals, food and beverage processing, chemicals, chemical fiber production, as well as for filtering media such as high-temperature air.
