Stainless Steel Sintered Mesh

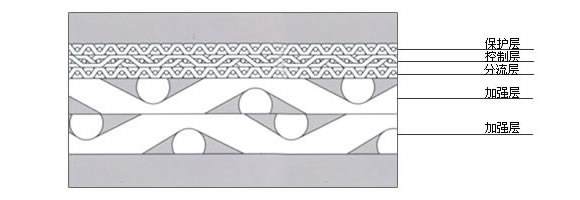

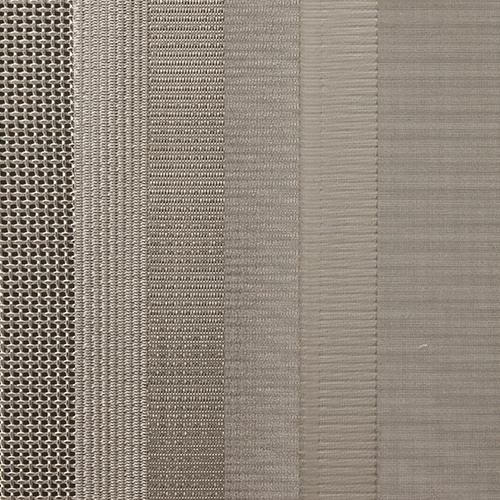

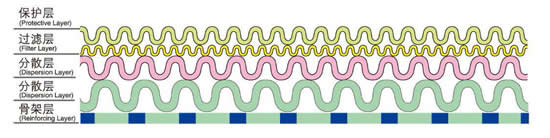

The filter medium of this sintered mesh filter made from layers SS wire mesh stack together and after sintering furnace process get a kind of filter media

Availability:

Quantity:



Inquire

Product Description

Sintered Mesh Specifications:

Size : Max 1150x1500mm; other size customized.

Materials and operating temperatures: 304 (≤300°C), 316L (≤320°C), 904L≤500°C, Hastall; special materials customized according to requirements.

Filtering accuracy: 5μm to 1000μm (for liquids); 1μm to 80μm (for gases).

Features:

Can be back washing for regeneration;
Uniform pore size,
Good fluidity;
The filter medium has high strength, low pressure drop
Resistant to high temperatures
Chemical corrosion, with a long service life.
Easy processed and shaped using plasma welding.

Application Areas:

Sand control screens for oil and gas industries,

filtration using polymer materials,

water supply and drainage treatment in nuclear power plants,

liquid filtration and separation,

gas filtration and separation,

oil filtration and separation,

Why Choose Metal Net Technical?

1. Over a Decade of Specialized Expertise
We are a specialist manufacturer with more than 10 years of experience in the metal net industry, focused on precision filtration and separation components.

2. High-Performance Core Products
We excel in designing and producing key metal filter elements:

Metal Pleated Filter Elements – High surface area and excellent dirt-holding capacity.
Metal Laminated Filter Elements – High strength and precise filtration accuracy.
Metal Net Tubes & Discs – Durable and versatile for various applications.

3. Full Supply Chain Integration
Our business covers the entire supply chain – from raw materials to finished products. This "mastering production from every angle" approach ensures reliable quality, controlled lead times, and a seamless partnership.

4. Clear Commitment to Value
Our mission is to provide high-quality products at competitive pricing with exceptional service. We strive to become your most trusted trading partner in the filtration field.

FAQ

Q1 .What is the minimum order quantity (MOQ) for filter baskets?
A: Our standard MOQ is 10 pieces per size. However, sample orders for 1-5 pieces are welcome for quality testing and fit verification. Customized sizes may require a small batch to start.

Q2: Can you produce filter baskets with my specific size and precision?
A: Yes. We specialize in custom manufacturing. You can provide your required diameter (10–250mm), length (30–1200mm), filtration accuracy (100–1000μm), and connection type (flange, thread, rod, quick-connect). We will then produce drawings and samples for your approval.

Q3: What materials are available? And what are their temperature limits?
A: We offer SS304, 316, 316L, and 321 stainless steel. Their maximum operating temperatures are:

SS304: ≤300°C
SS316L: ≤320°C
SS321: ≤500°C

Q4: How long is the lead time?
A: For standard non-customized baskets, lead time is 7–10 days. For custom orders (new size or precision), it is typically 15–20 days after drawing confirmation. Sample orders are faster – about 5–7 days.

Q5: Do you provide a quality certificate or material test report?

A: Yes. We can provide a Material Test Report (MTR) showing chemical composition and mechanical properties. A certificate of conformance is also available upon request.

Q6: How do I clean and maintain a metal filter basket?
A: Most metal filter baskets can be backwashed, ultrasonically cleaned, or manually brushed. For tough debris, soaking in warm water with mild detergent followed by low-pressure water rinse is effective. Always check the recommended method for your specific accuracy level.

Q7: What is your warranty policy?
A: We offer a 12-month warranty against manufacturing defects under normal operating conditions. Our team also provides technical support for installation and maintenance questions.

Q8: How should filter baskets be packed for shipment?
A: Each basket is individually wrapped in anti-rust paper or plastic, then packed in reinforced cartons with foam protection for small orders, or wooden crates for bulk and large-size items to prevent damage during transit.

Q9: Can you help me choose the right filter basket for my application?
A: Absolutely. Please tell us your fluid type, operating temperature, required flow rate, and what solid particles you need to remove. Our engineers will recommend the most suitable material, mesh size, and design.

Q10: How can I get a quote?
A: You can fill out the online message form on this page, email us directly at gg@metalnete.com, or call +86-18531101857. For fastest response, please provide your size, material preference, and quantity.
